20.47'' Electric Program Control Paper Cutting Machine Heavy Paper Cutter With Infrared Safety Protection

Product Overview: <br>The heavy program control paper cutting machine is a high-precision and high-efficiency industrial cutting facility. It combines the mechanical strength and program control technology, has the advantages of high cutting precision, high cutting efficiency, good adaptability, energy saving and safety protection. It achieves the LCD control, infrared photoelectric protection, independent paper pressing and cutting, 3 cutting modes and other functions. The paper cutter can be applied to small and medium-sized printing enterprises, offices and other places, and can be used for cutting papers, books, pictures, documents files and so on. <br> <br>Product Parameters: <br>Model: 520V8 <br>Voltage: 110V 60Hz <br>Power: 300W <br>Maximum cutting width: 52cm (20.47in) <br>Minimum cutting width: 3cm (1.18in) <br>Maximum cutting thickness: 8cm (3.15in) <br>Paper pressing mode: Independent motor <br>Display mode: LCD <br>Cutting alignment: Yes <br>Safety protection: Infrared photoelectric protection <br>Cutting accuracy: 0.3mm <br>Cutting mode: Inclined blade <br>Blade: Alloy steel <br>Machine size: 95*113*140cm (37.41*44.49*55.12 inches) <br>Net weight : 211kg (465.18Lbs) <br> <br>Attention: <br>1. The machine is allowed to cut printed paper or books or soft leathers only. It is forbidden to cut any metal sheets or other hard objects which will cause damage to the machine quality. <br>2. Children or non-professional persons must not operate this machine <br>3. Do not reach beneath the blade. <br>4. Do not take or transport the blade without protection. <br>5. Do not cut hard material or materials which may splinter. <br>6. Ensure the power supply and machine are reliably grounded. <br> <br>Operation Method <br>1. Before operating the machine, please read the instruction carefully. Then remove the things on the machine and clean the machine. <br>2. Insert the power plug into AC110V 60HZ socket. <br>3. Turn the protective switch to ON position. The display screen is on, and the indicative line appears. If there is expression ‘PLEASE RESET’ on the display screen, you need press the reset button once more. The machine can be operated after the paper is pressed, and the blade and paper pusher are calibrated automatically. <br>4. Put away paper stack or books in the cutting area. <br>5. Start cutting after setting the cutting size. Press left and right cutting buttons at the same time, then the paper presser comes down to press paper. Cutting can be done after pressing paper well and tightly. When you found something wrong, stop pressing two cutting buttons at once. The blade and paper presser will stop running. After everything goes well, press the left and right buttons to make cutting completely. <br>6. After cutting is completed, clean the machine thoroughly. <br> <br>Item Number (120126): <br>1 x Electric Program Control Paper Cutting Machine 110V

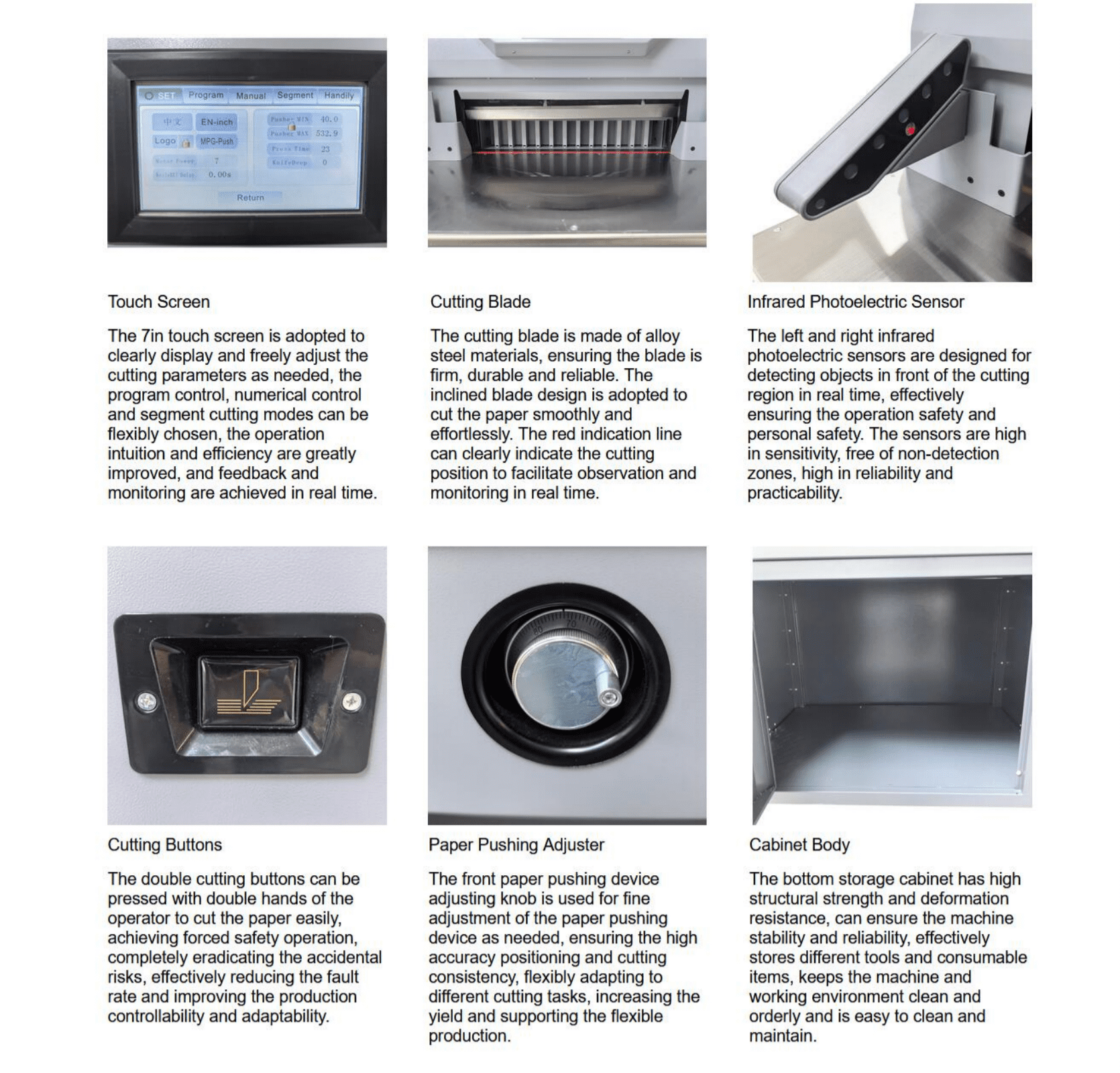

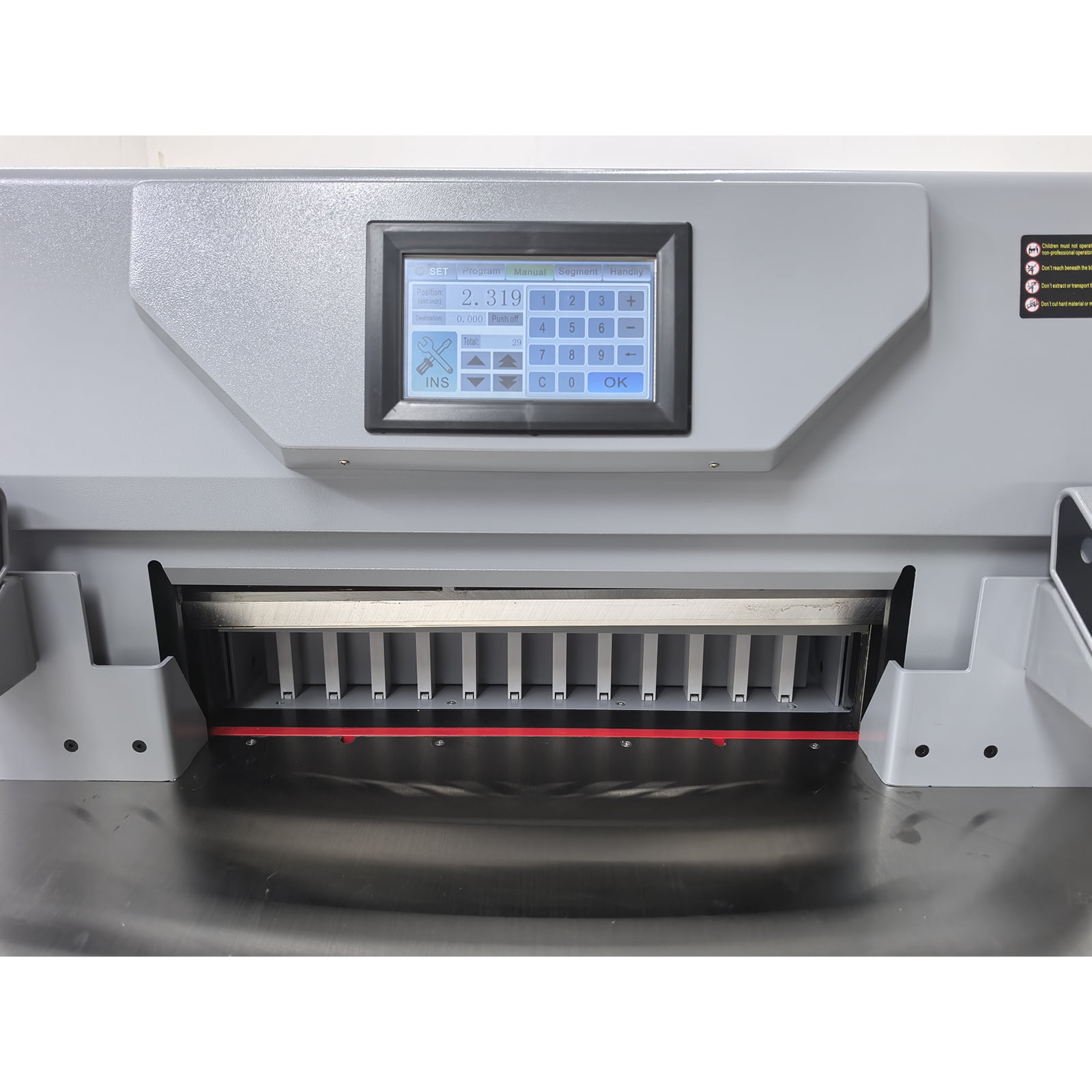

• ‌Intelligent Touch Screen Program Control: 7-inch interactive touch screen enables parameter adjustment, fault detection and size calibration. Supports 3 cutting modes with 99 groups of storable cutting data for efficient operation.
• High-Precision Stable Cutting Performance: Inclined durable alloy steel blade with dual-rail paper pusher and fine-tuning knob. Achieves 0.3mm ultra-precision cutting, supporting max 520mm width and 80mm thickness paper processing.
• Full-Range Safety Protection System: Infrared photoelectric sensors trigger instant automatic shutdown on obstruction detection. Matches dual-hand start buttons, air switch and dust cover to fully eliminate misoperation hazards.
• Independent Dual Motor Drive System: Separate dedicated motors for paper pressing and cutting actions. Delivers stable, powerful independent force output for consistent, reliable cutting effects.
• Humanized Durable Machine Structure: Built-in infrared alignment mark and bottom storage cabinet. Realizes accurate cutting positioning, convenient consumable storage and easy daily cleaning & maintenance.
