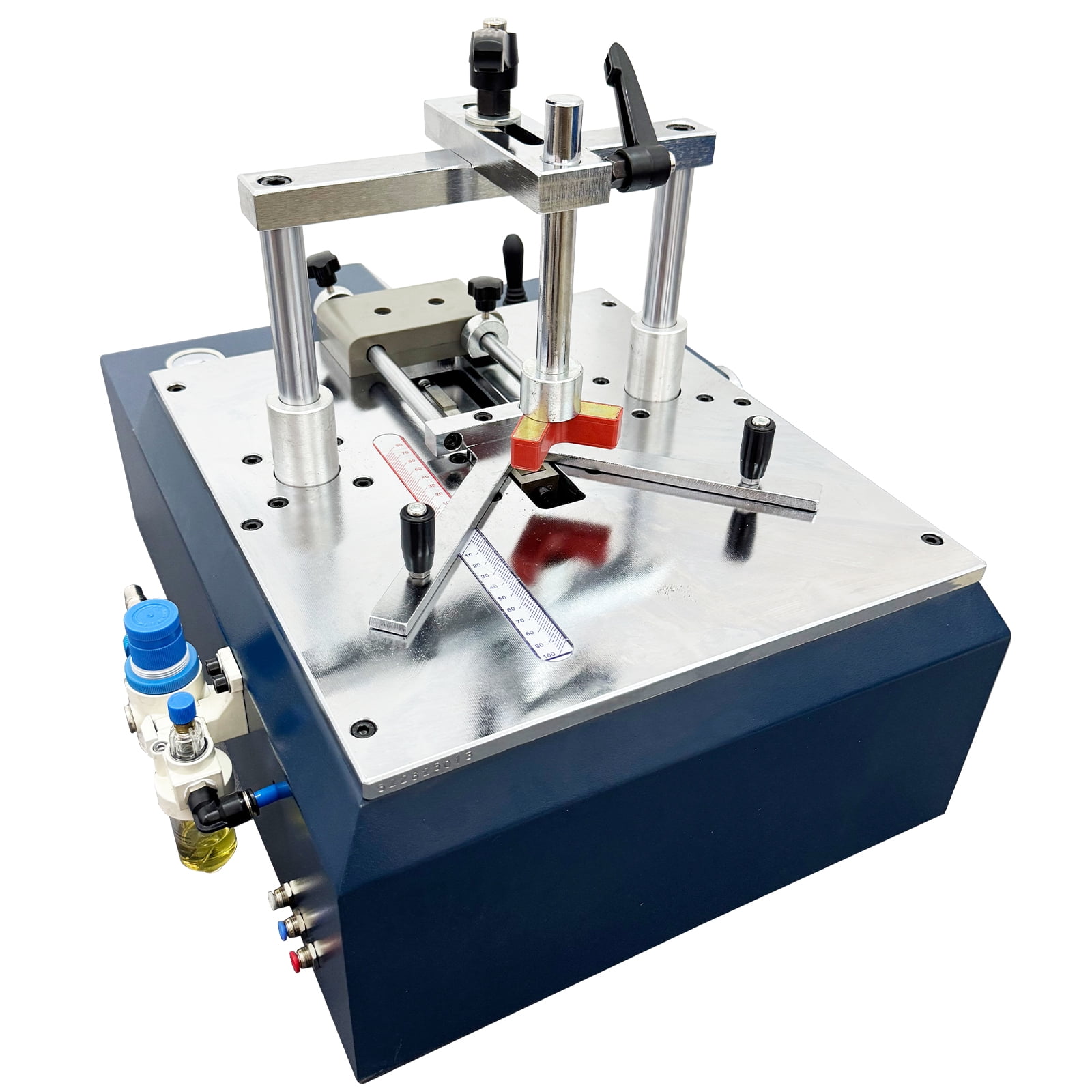

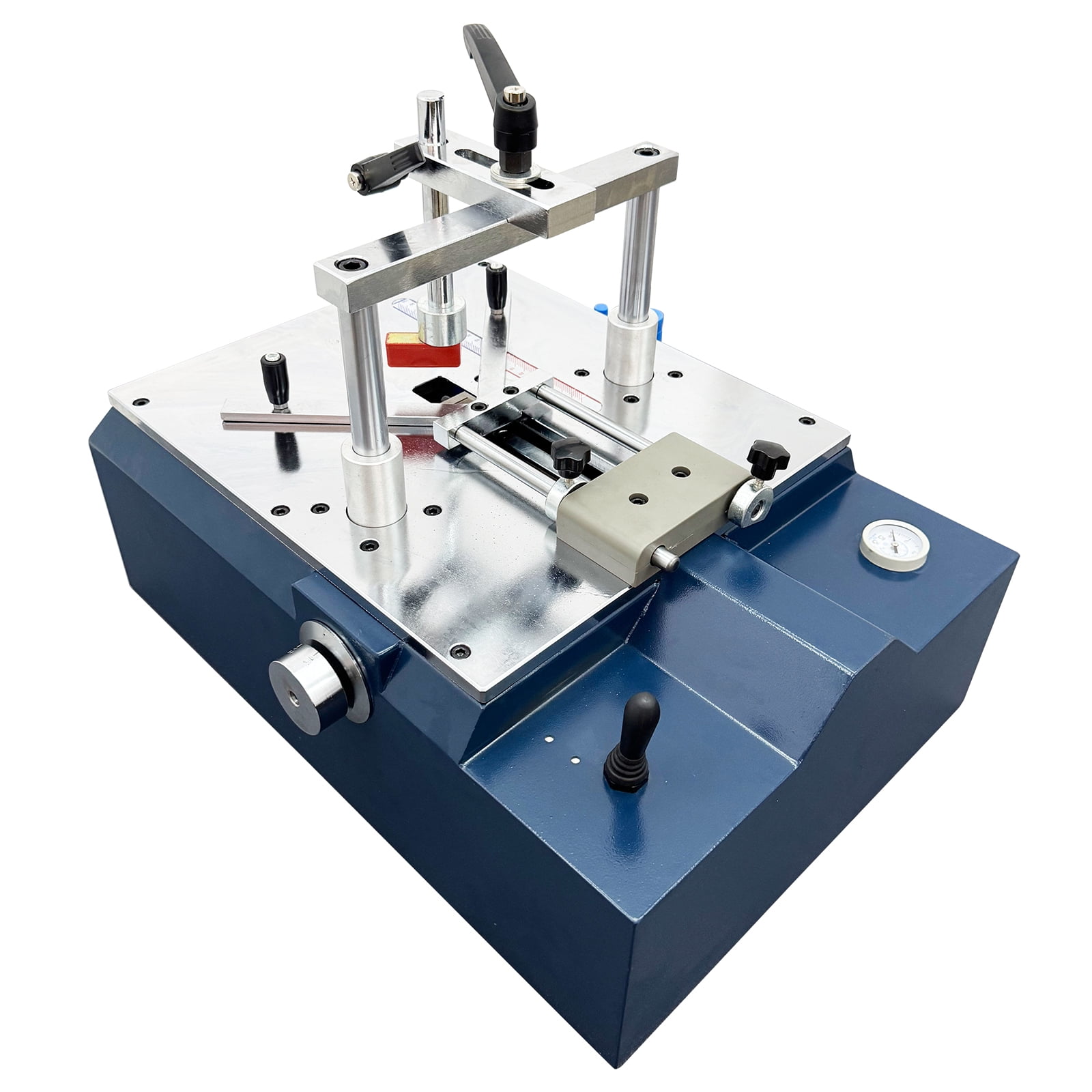

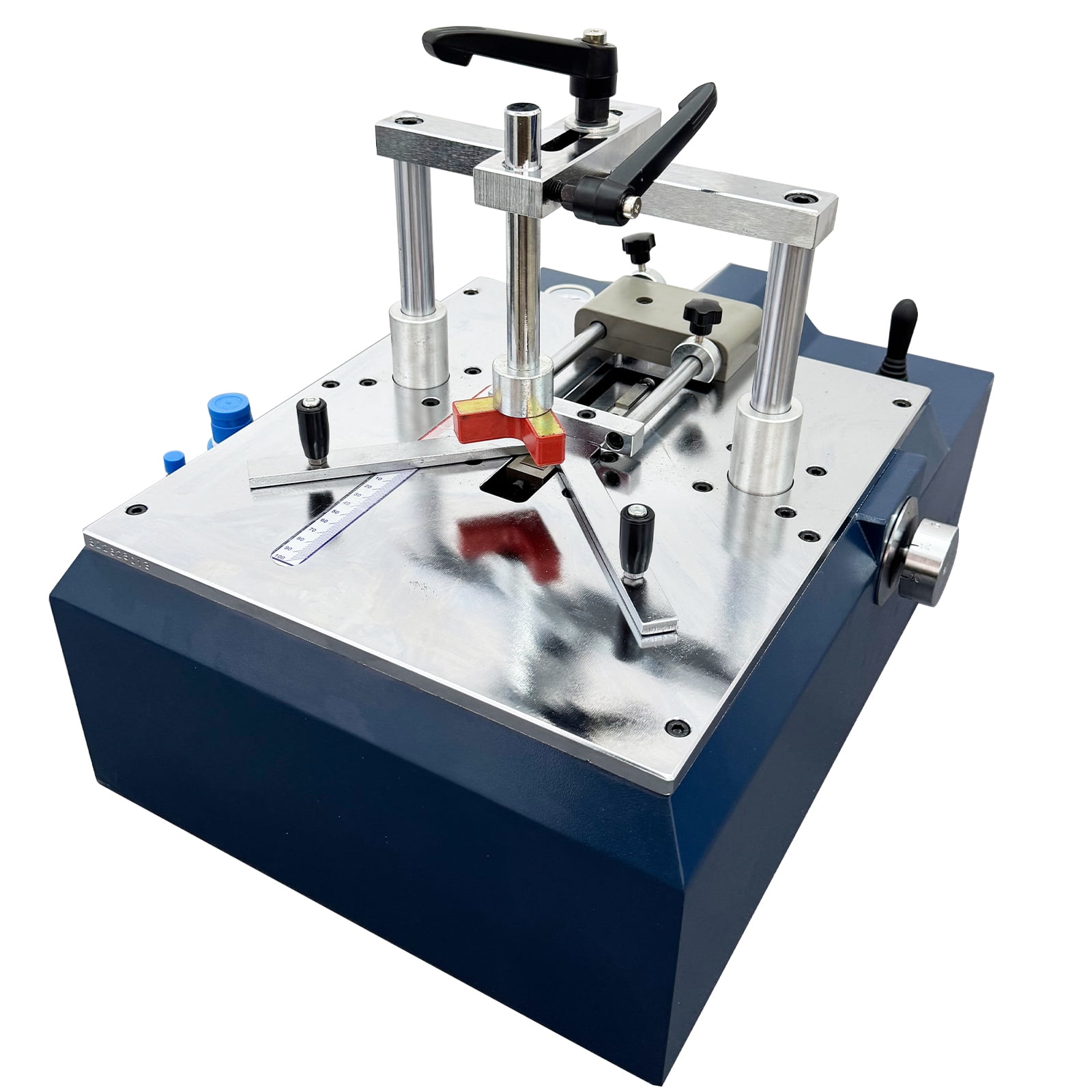

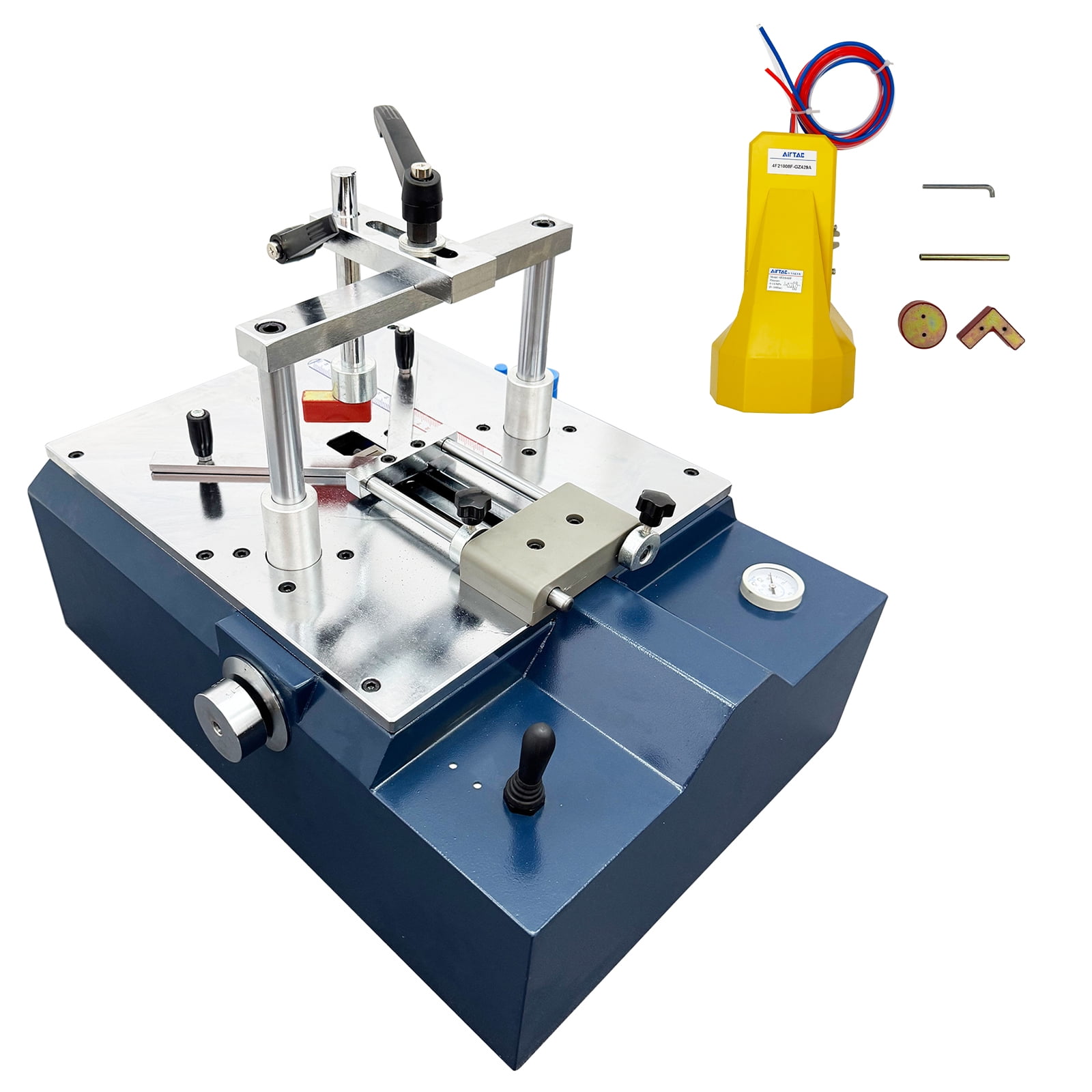

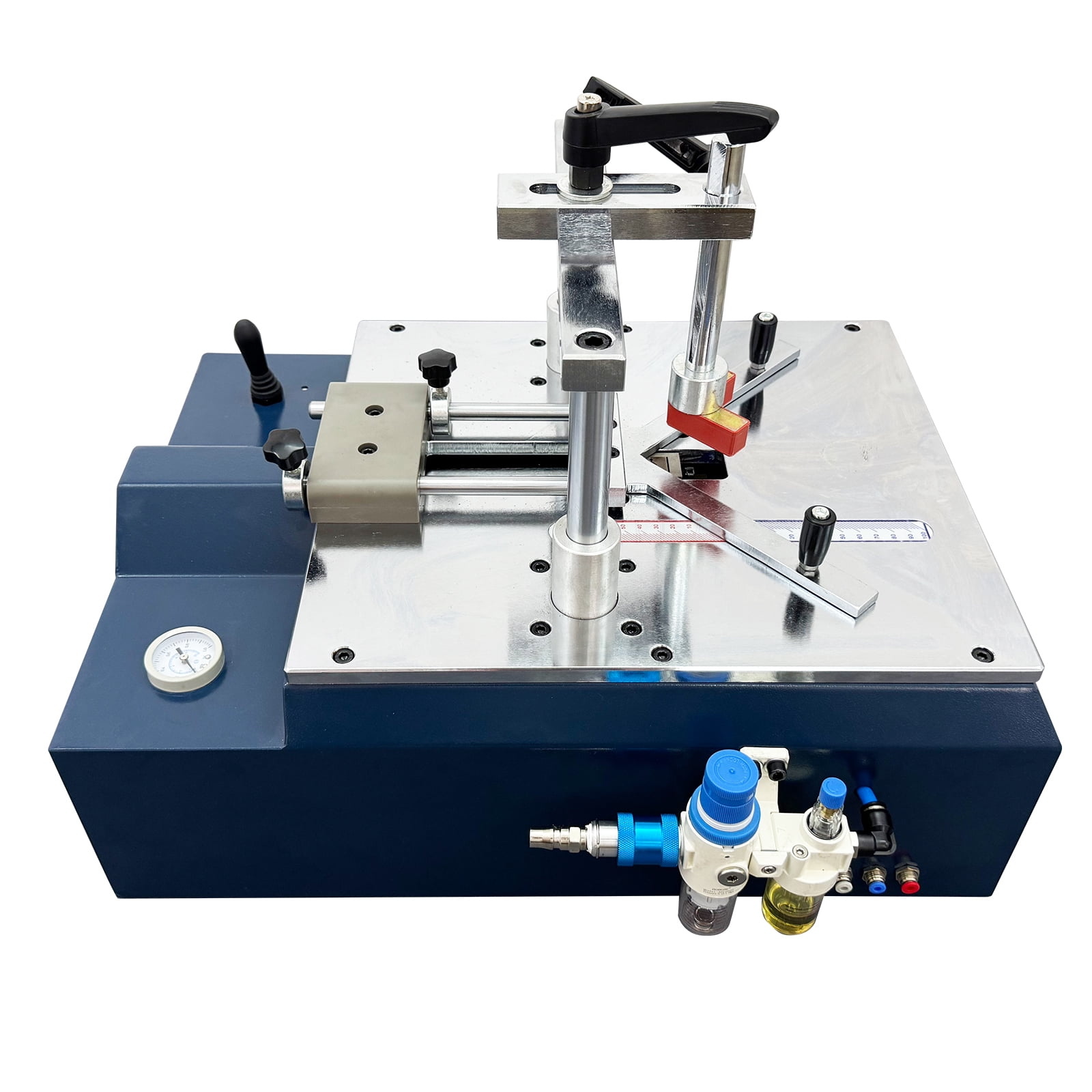

Desktop Pneumatic Picture Frame Nail Angle Machine Wood Frame Joining Machine Adjustable V Nailer

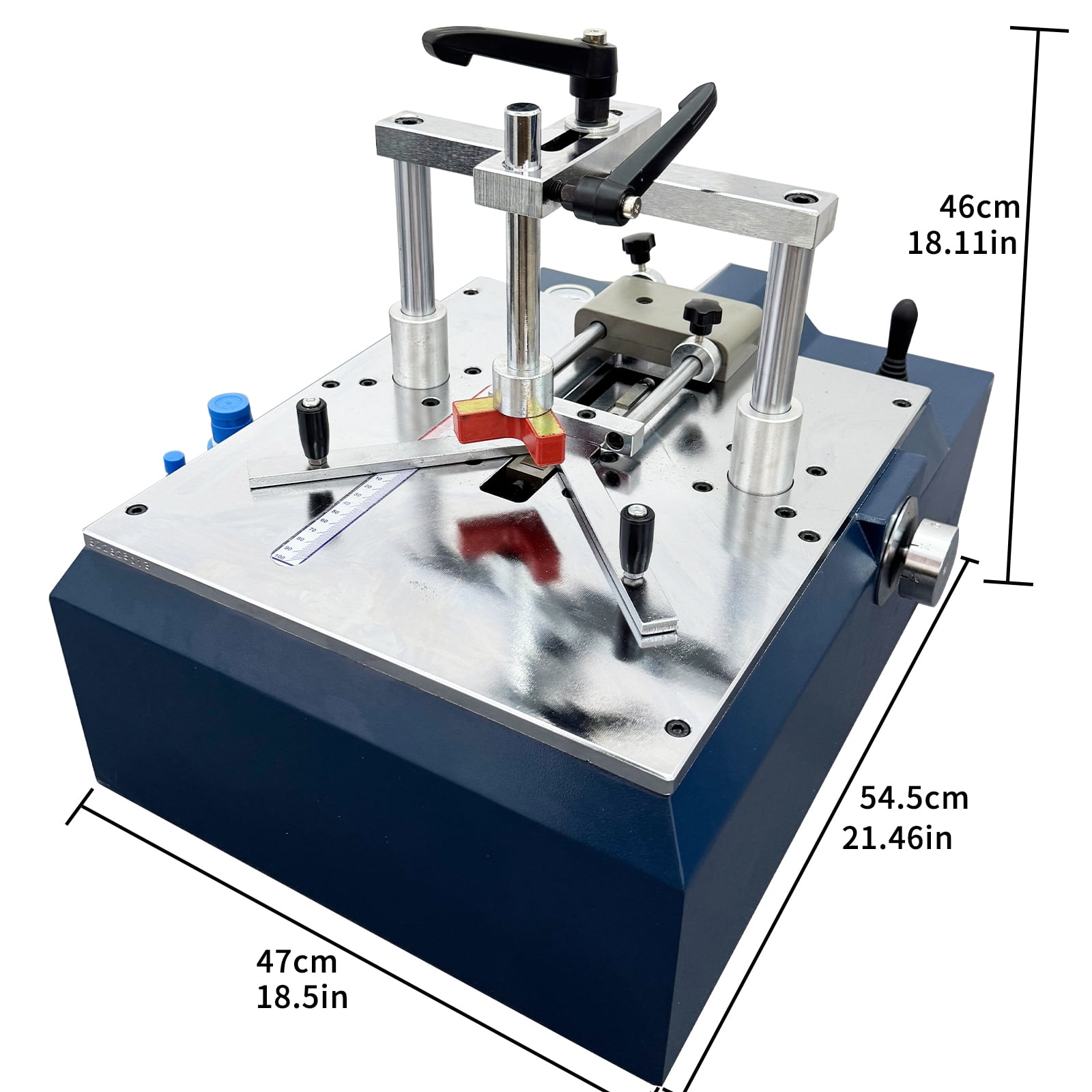

Product Overview <br>Adjustable nail angle machine is a pneumatic working machine, is suitable for assembling the wooden and ps mouldings products into 90°; The working speed for v nailing is very fast with automatic oil-filled system for all slipping parts; With these advantages, this machine is widely used in all of working place in fields of photo frames, mirror frames and handicrafts etc. Adjustable nail angle machine puts the v-nail into the angle of wooden frame under the mechanical power or pneumatic power, to guarantee the angle stable and deeply close. The width of v-nail is 0.4"-0.42"(10.3-10.8mm) in degree 89° to 90°. <br> <br>Product Parameters: <br>Mode: Adjustable <br>Suitable v-nail(mm): 7/10/12/15 <br>Working air-pressure: 0.6-0.8Mpa <br>Max.nailing width: 4.3" (110mm) <br>Max.nailing thickness: 4.5" (115mm) <br>Material: Iron <br>Package size: 23"*21.6"*19.3"(58cm*55cm*49cm) <br>Net weight / Gross weight: 70LB(32kg) / 88LB(40kg) <br> <br>Usage Steps: <br>1. Check every spare part to make sure if ready for working, then connect to air source with slipping switch on. Then wait for a minute to check if there any leakage of air or water. Check if the air pressure is enough for working. The nailing air pressure is 0.6-0.8MPA; pulling v nail is 0.22-0.4MPA. <br>2. Check if the v nail mould is locked in tight and turn on the air valve to make the v nail tight in the slot, press the foot-pedal to check if the v nail could come out or not. <br>3. Put the frame moulding into the angle plate and adjust the first and last nailing position to make the frame will be assembled well. Then lock with the handle. <br>4. After above adjustment, the machine is ready for working. Put the frame moulding into angle plate and then confirm the nailing position, half press the foot pedal to make the hammer against the frame moulding, then check if the frame angle is in the perfect assembling and press the foot pedal again to nail the angle. The operator could nail a second v nail at the same position without moving the frame moulding. <br> <br>Precautions: <br>1. Read instruction manual deeply before operation start. <br>2. Non-operator is forbidded to operate the machine to avoid injuries. <br>3. Every time before operation start, check if there any oil or air leakage. <br>4. Do not put your hands under the hammer when the machine is under working status. <br>5. Turn off the air sources when finish working. <br> <br>Item Included(057157): <br>Adjustable nail angle machine <br>Accessory package *1

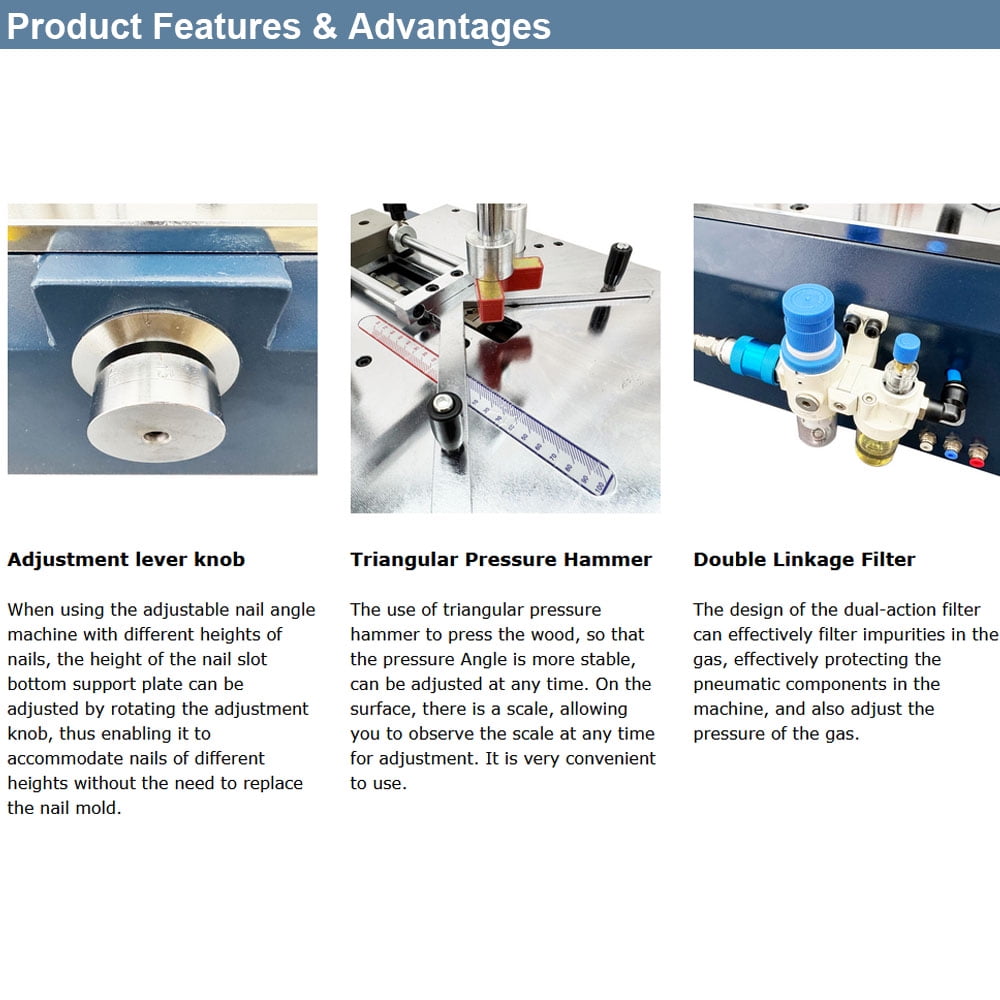

• ‌Adjustment Lever Knob: The height of the nail slot bottom support plate can be adjusted by rotating the adjustment knob, thus enabling it to accommodate nails of different heights without the need to replace the nail mold.
• Stable: The use of triangular pressure hammer to press the wood, so that the pressure Angle is more stable, can be adjusted at any time. On the surface, there is a scale, allowing you to observe the scale at any time for adjustment. It is very convenient to use.

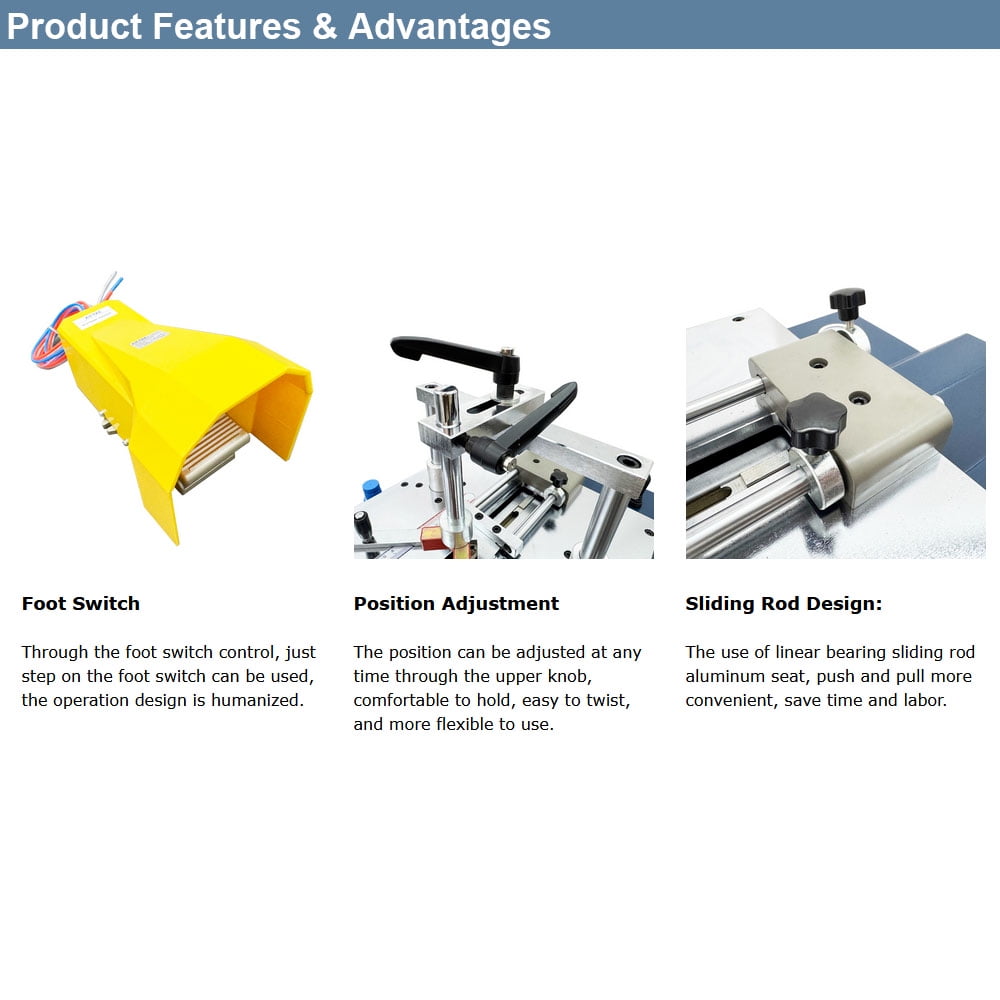

• Foot Switch: Through the foot switch control, just step on the foot switch can be used, the operation design is humanized.
• Position Adjustment: The position can be adjusted at any time through the upper knob, comfortable to hold, easy to twist, and more flexible to use.
• Widely Application: This machine is widely used in all of working place in fields of photo frames, mirror frames and handicrafts etc.
