| Management number | 231077721 | Release Date | 2026/06/18 | List Price | $440.00 | Model Number | 231077721 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

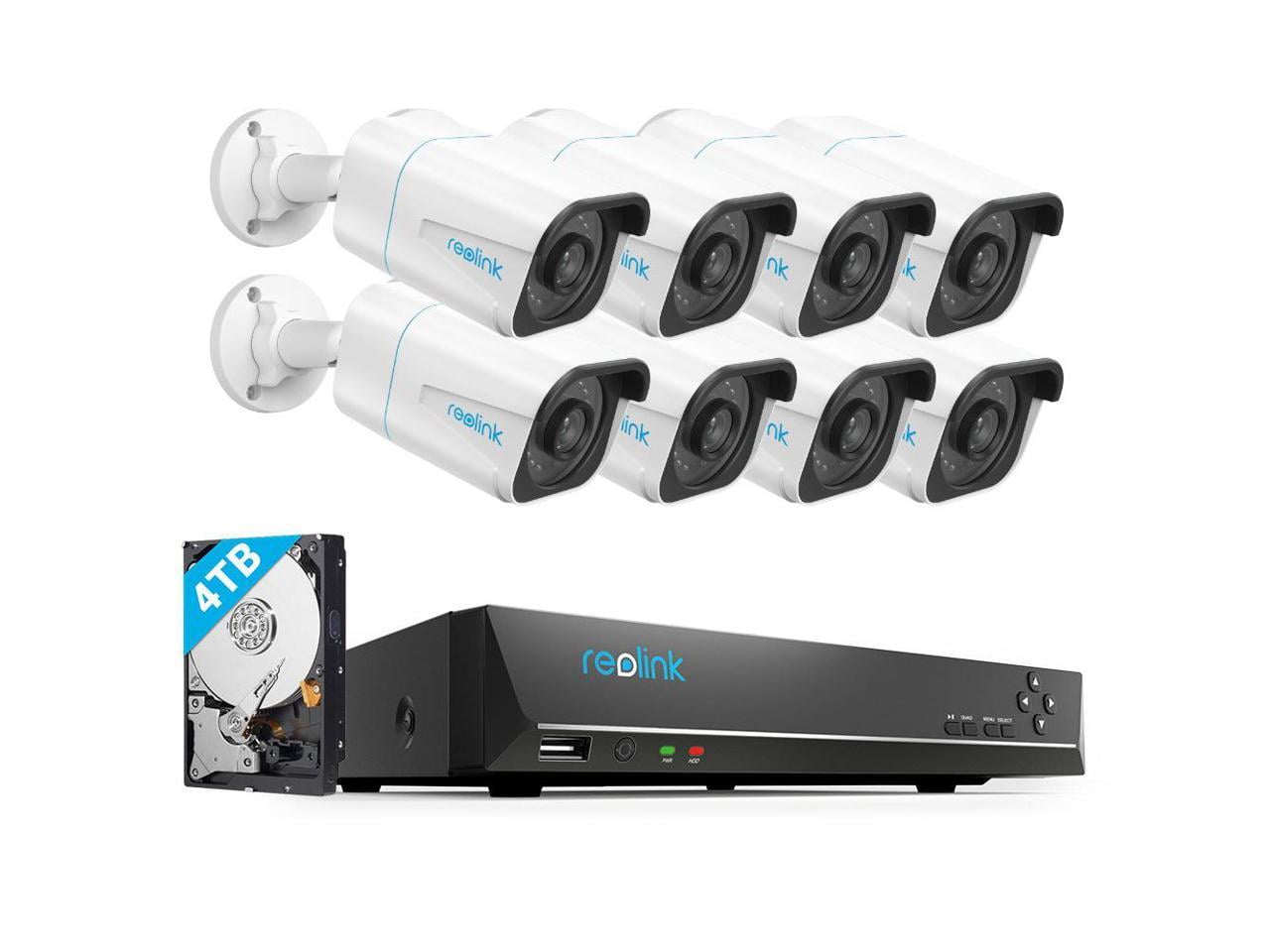

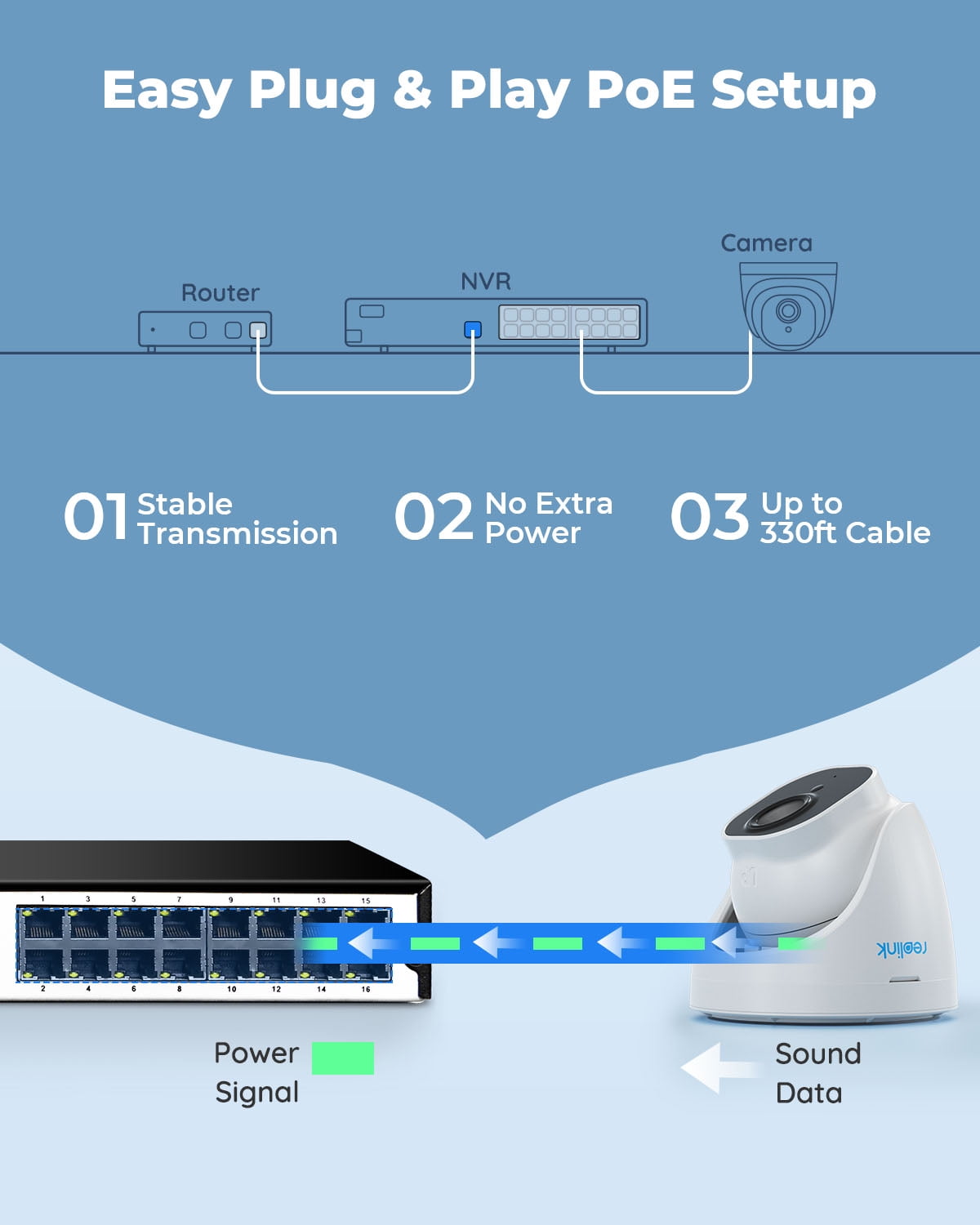

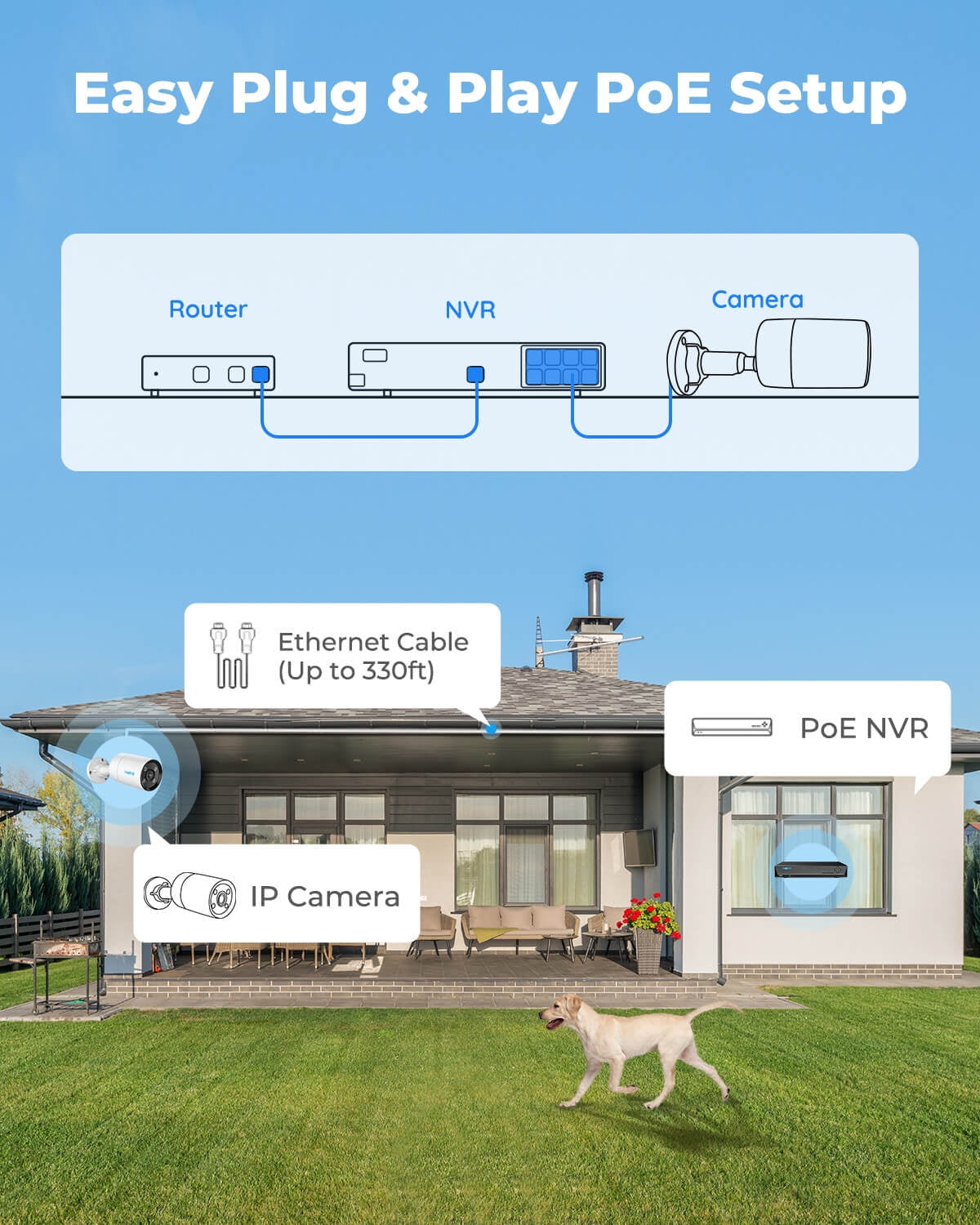

<p><b>RLK16-810B8-A - Smart 4K 8MP Security Kit with 4TB Built-In</b></p> <ul> <li><b>New Technology Reduces False Alarms</b></li> </ul> <p>With the on-camera technology of analyzing the shapes of people, vehicles, and pets*, RLK16-810B8-A can accurately detect these objects, ignore other less important events, and thus greatly reduce false alarms.</p> <p>[Person/Vehicle Detection] [Accurate Alerts] [Without Subscription] [Pet Detection (beta)*]</p> <p><i>* Note: Currently, pet detection is used to detect cats and dogs and is in beta testing.</i></p> <ul> <li><b>Flawless Video in 4K Ultra HD</b></li> </ul> <p>Home security jumps from 1080p to 4K Ultra HD – 1.6X clearer than Super HD and 4X clearer than 1080p HD. Details you see around home or store will be reproduced perfectly in live streaming and playback.</p> <p>[87° Viewing Angle] [Audio Recording]</p> <ul> <li><b>Easy PoE Setup</b></li> </ul> <p>No power cable or adapter is needed. RLK16-810B8-A with Power over Ethernet (PoE) technology needs only a network cable for each camera. Less wiring, less cost, more convenience.</p> <ul> <li><b>Non-Stop Recording</b></li> </ul> <p>With 4TB HDD built in and up to 12TB storage capacity, this PoE surveillance kit supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat.</p> <p>[Built-in Seagate 4TB HDD] [Up to 12TB]</p> <li><b>New Technology Reduces False Alarms</b></li> <p>With the on-camera technology of analyzing the shapes of people, vehicles, and pets, RLK16-810B8-A can accurately detect these objects, ignore other less important events, and thus greatly reduce false alarms.</p> <ul> <li><b>Seamless Surveillance with Night Vision</b></li> </ul> <p>The cameras' infrared lights enable excellent nighttime recording. With up to 100ft night vision, this security system continues to keep your family firmly guarded after sundown.</p> <ul> <li><b>Easy Management</b></li> </ul> <p>You can also access and control your cameras via Reolink APP and Client, besides NVR. Just a touch away, manage your home, store or factory easily.</p> <ul> <li><b>Motion Alerts</b></li> </ul> <p>Once it detects something suspicious, this motion-triggered camera will send to your device an instant push notification. Know what’s happening all the time.</p> <ul> <li><b>Multi-Cam Live Feed</b></li> </ul> <p>See the live feed of multiple cams on the same screen. Easier to have an overview of your property.</p> <ul> <li><b>Motion Zone</b></li> </ul> <p>You can customize the motion zone to your like, deciding where objects’ movements will be detected and where they will not.</p> <ul> <p><br></p></ul>
Additional Features:
This security camera system can be expanded up to 16-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP or 4MP – to cover every corner in your home, store or factory.
* For best compatibility, Reolink cameras are recommended.
The free Reolink app allows you to access all your cameras remotely, no matter how many you have. Check in on your home or business whenever, wherever. Perform live views and playbacks on your smart device (iOS, Android) via WiFi or 3G/4G connection.
Specifications
NVR - RLN16-410-4TB
Video Outputs: Up to 12MP for HDMI and 1080P for VGA
Frame Rate: 25fps
Compression Format: H.265, H.264

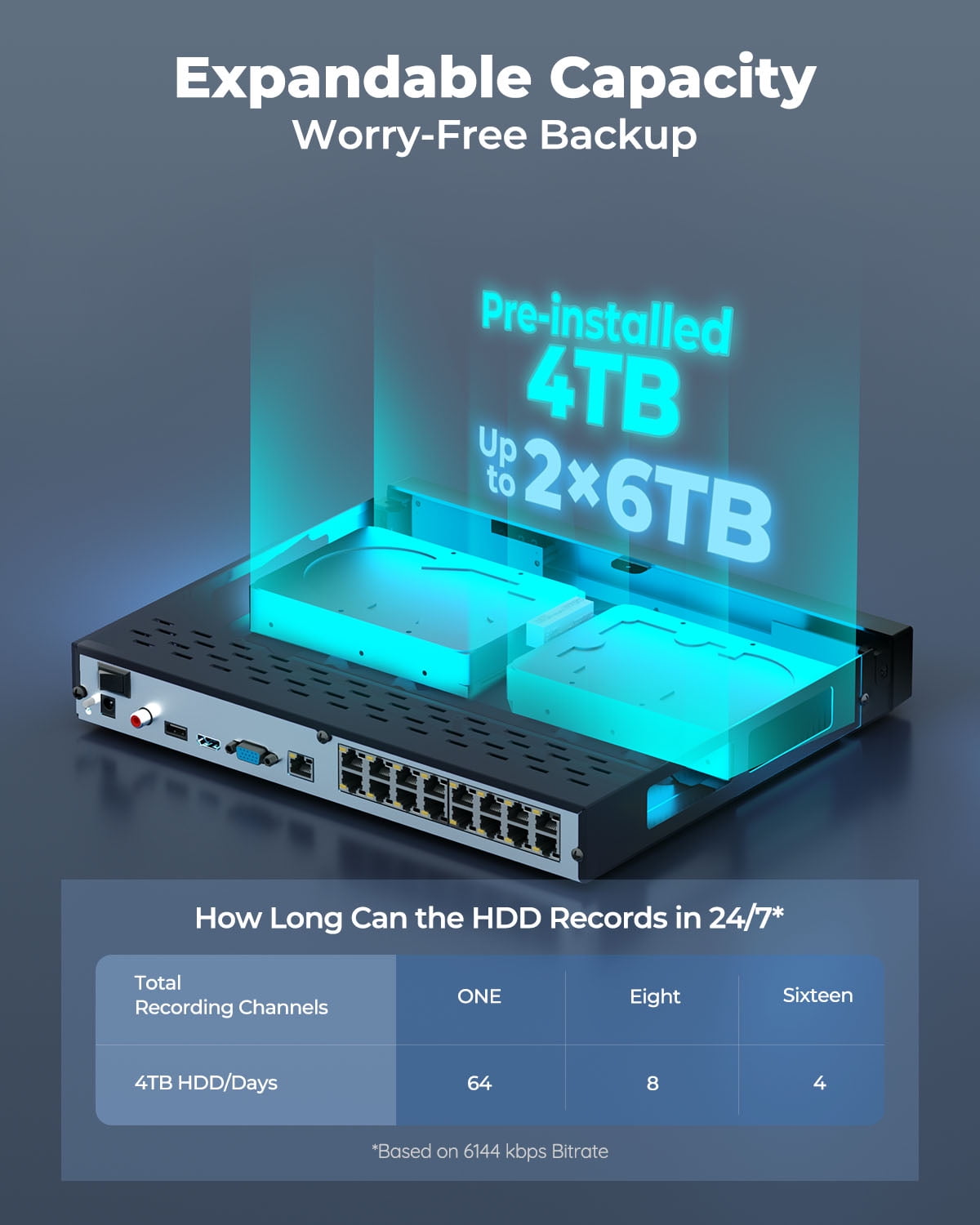

HDD Capacity: 1× internal port, 1× external port, 6TB max for each port (12TB in total)
Remote Access: iOS/Android Phone, Windows/Mac PC
Working Temperature: -10°C~+55°C (14°F~131°F)

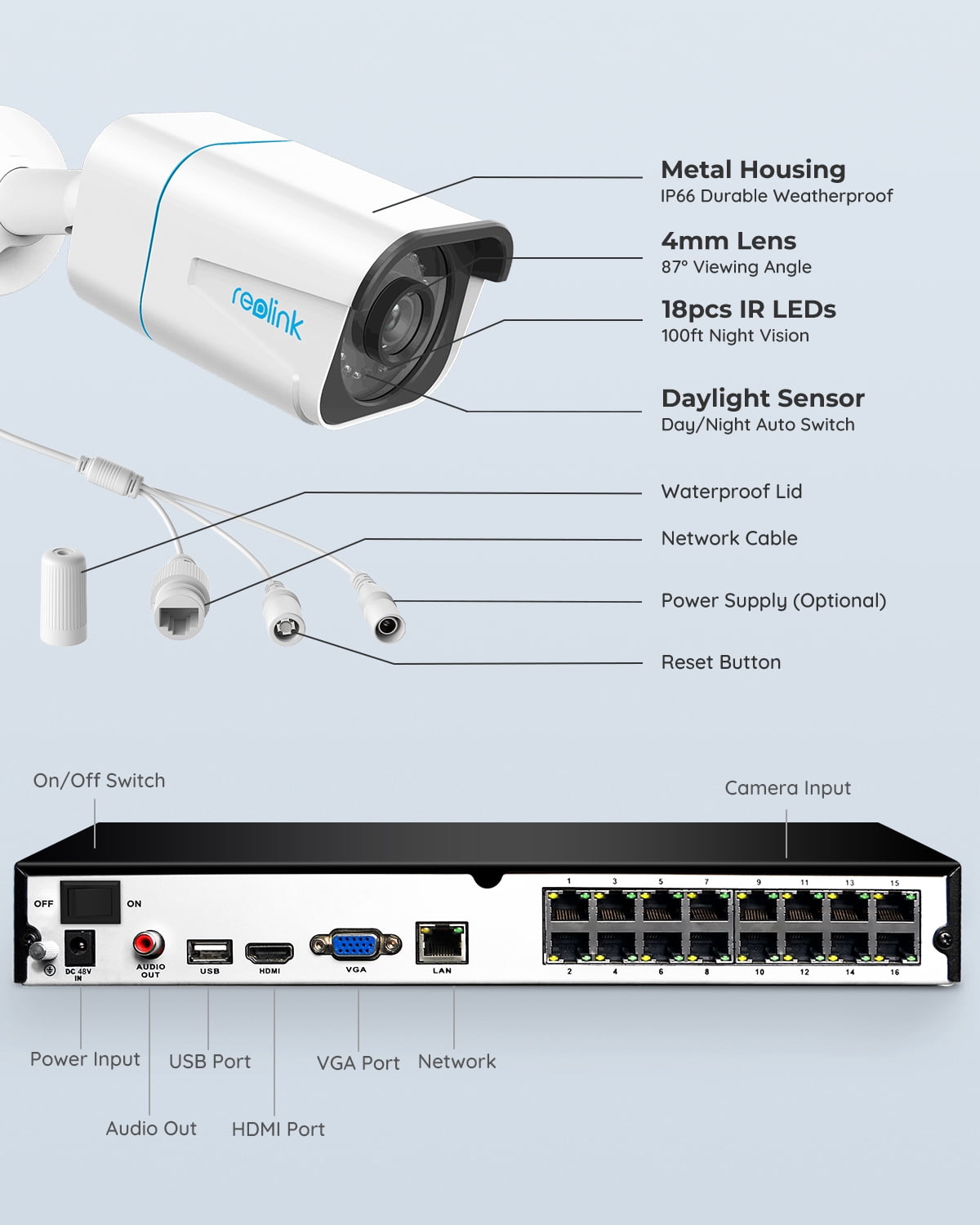

Camera - RLC-810A
Waterproof: IP66
Video Resolution: 3840x2160 (8.0 Megapixels) @25FPS
Lens: f=4.0 mm fixed; F=2.0, with IR-cut filter
Night Vision: 100ft, 18pcs IR LEDs
Audio: Built-in Microphone for Audio Recording only
Field of View: Horizontal: 87°; Vertical: 44°
Notice: Cameras in the kit can be used without Reolink PoE NVR. Cameras in the kit can work with Alexa or Google Home.

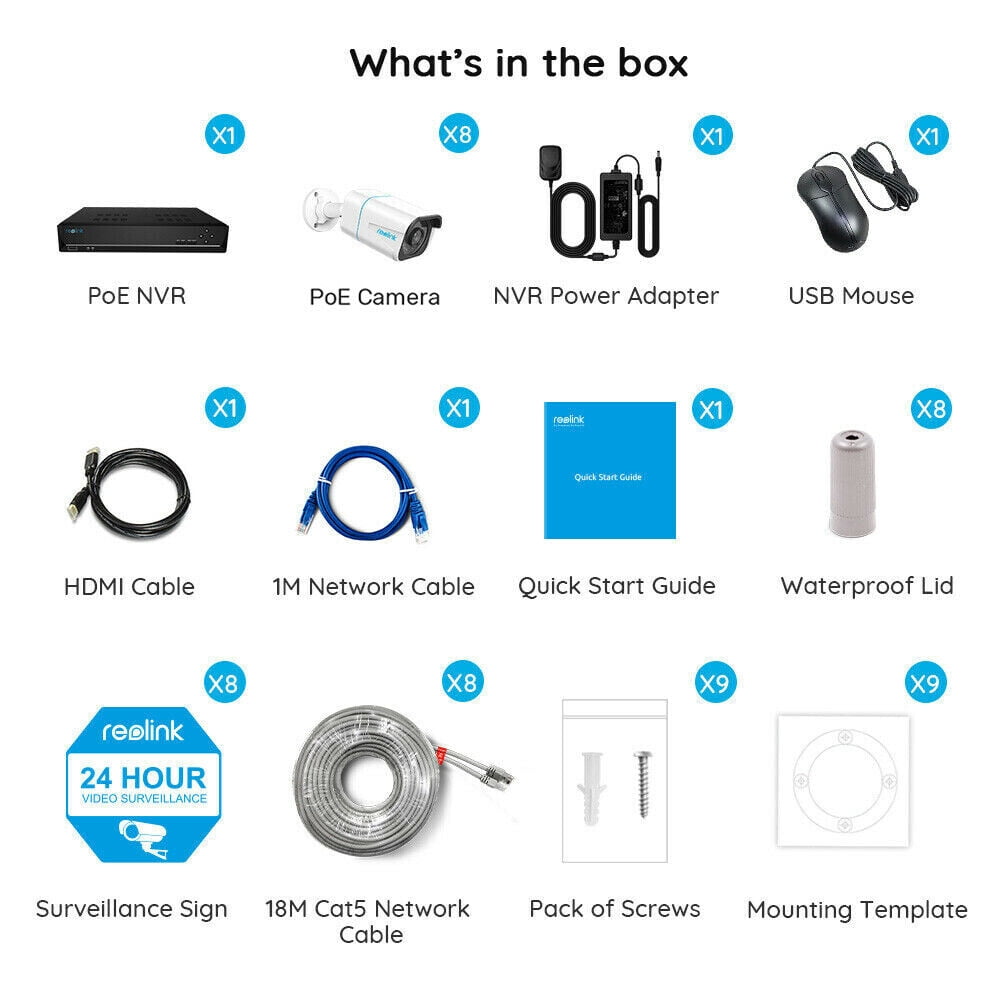

What's in the box:
RLN16-410 x 1,
Q&A Time:
Question 1: What if the HDD is filled up? Do I need to manually delete the videos?
Answer: You can turn on the "Overwrite" button so the new recordings will automatically cover the old ones when HDD gets full.
Question 2: When I tried to connect my IP cameras from other brands, why don't they display?
Answer: Reolink cameras work perfectly with Reolink NVRs. But it is not recommended to add third-party cameras to Reolink NVRs since there may involve compatibility problems. That's why some of the functions don't work properly.
Question 3: Can I use Cat6 or Cat7 cables?
Answer: Our cameras support T-568B connectors and CAT5, CAT6, CAT7 with 8 PIN Ethernet cables so you can use Cat6/7 ones. When using Cat6 or upper, the cables can be up to 330 feet
| Has night vision | Y |
|---|---|
| Resolution | 3840X2160 (8.0 Megapixels) |
| Field of view | Horizontal: 87° |
| Features | Built-in Microphone, High Definition, Smart Technology, Water-Resistant, Waterproof, Waterproof Camera, Weather-Resistant |
| Rec location | Indoor and Outdoor |
| Power type | Corded Electric |
| Wireless | IEEE 802.3af/at |
| Brand | Reolink |
| Battery life | 1 min |
| Mount type | Ceiling or Wall Mount |
| Camera type | Bullet Surveillance Cameras |
| Lens type | Fixed Lens |
| Number of cameras | 8 |
| Mem card type | Micro SD |
| Compatibility | Reolink |
| Smart control | Alexa, Google Home |
| OS | iOS, Android, Windows, Mac OS, Network Protocol HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Color | White |
| Accessories included | RLN16-410x1 B800x8 NVR Power Adapterx1 HDMI Cablex1 USB Mousex1 1m Network Cablex1 18m Network Cablex8 |
| Number of megapixels | 8 MP |
| Assembled product height | 14.26 in |
| Assembled product weight | 27.9 lb |
| Input/output type | HDMI |
| Inputs & outputs | Video Outputs: Up to 12MP for HDMI and 1080P for VGA |
| Number of channels | 16 |
| Screen size | 0.1 in |
| Connector type | PoE |
| Piece count | 8 |
| Retail packaging | Set |
| Model | 4K 16CH 8Pcs PoE 24/7 Surveillance Camera System |
